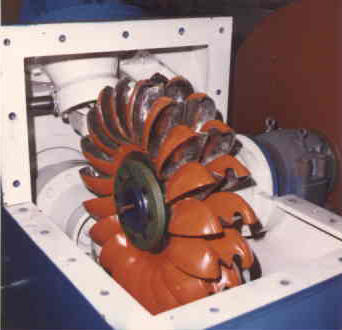

The 0.61 meter Pelton runner used at the Klemtu site develops 600 kW.
    A two nozzle Pelton turbine.

Klemtu Hydro
British Columbia, Canada

     Statistics:

bullet

Turbine: 0.61 m two nozzle Pelton

bullet

Generator: 600 KW Kato @ 900 RPM

bullet

Rated head: 220 m

bullet

Rated flow: 0.33 m3/sec

This facility provides power to a remote village on the West Coast of British Columbia, Canada. A lake intake structure diverts water into a 0.36 m steel penstock which is supported on concrete pedestals descending to the power house.

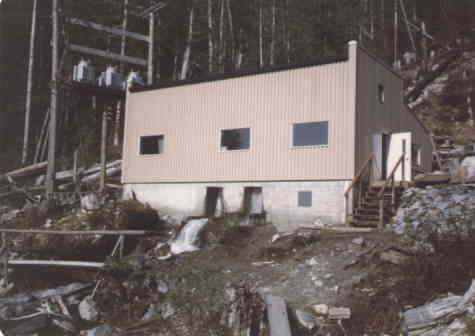

A concrete and steel power house contains the equipment.
      The concrete and steel power house.

The 600 kW Pelton runner mounted in housing.
The entire turbine unit with 0.61 m runner.
