Dependable Turbines Ltd.





Made in Canada



Monroe Cold Spring Hydroelectric Project

Monroe City, Utah, USA

Statistics:

bullet

Turbine: One single nozzle Pelton

bullet

Generator: One 45kW Westinghouse induction generator @ 1200 RPM

bullet

Rated head: 137.2m

bullet

Rated flow: 0.0329m3/sec

bullet

Commissioned: 2013

The water for this project comes from Cold Spring.  After passing through the power house, the water will be returned to the culinary water line so it will be available for use in the City's culinary water system.  This micro hydroelectric power plant supplies electricity for the city.  It can produce enough power on average to power 35 homes year round.  The City's goal is to provide more of their own power so they don't have to raise rates in buying more power from outside sources.

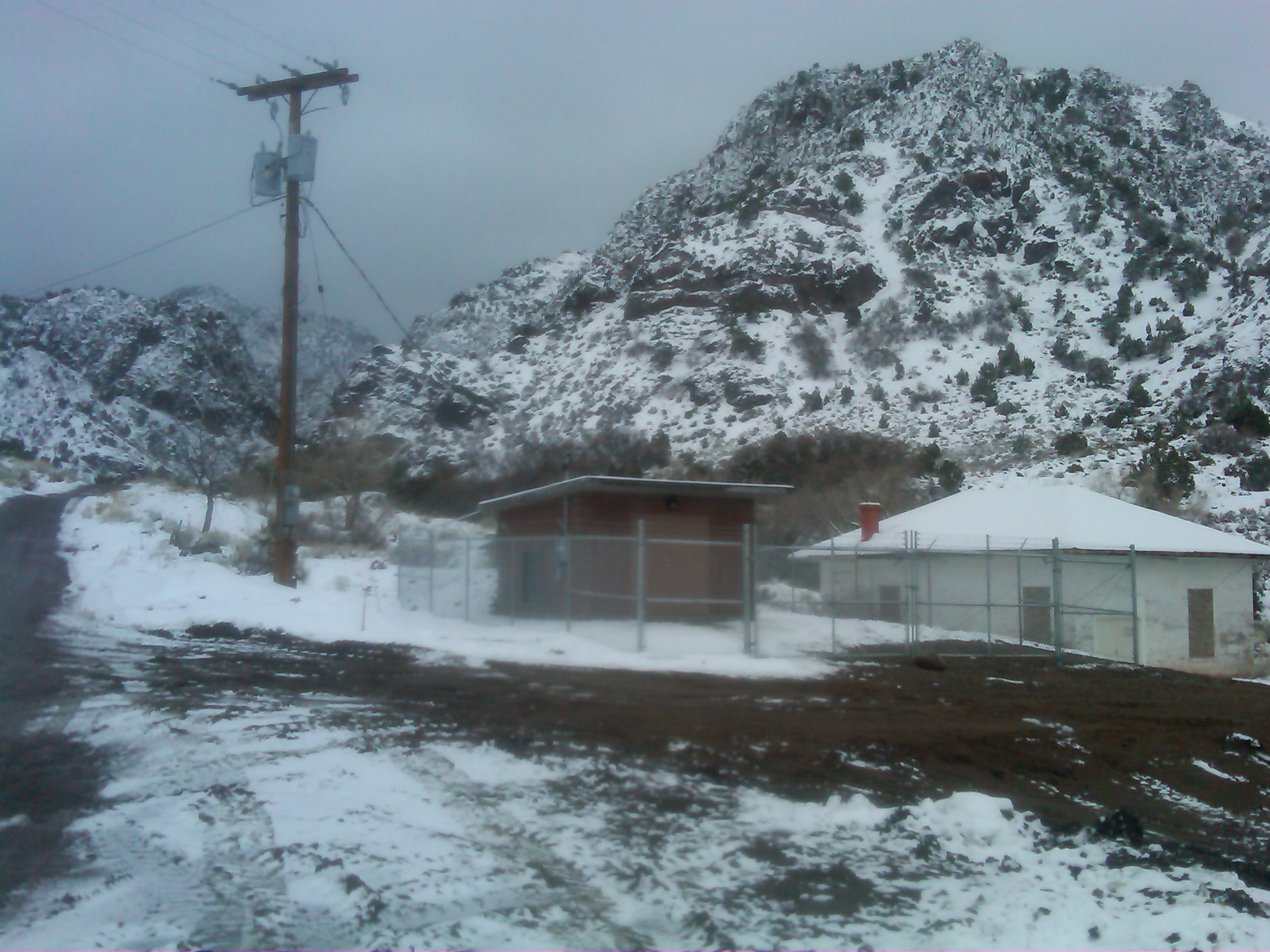

Hydro Powerhouse and Power Pole

Powerhouse and power pole

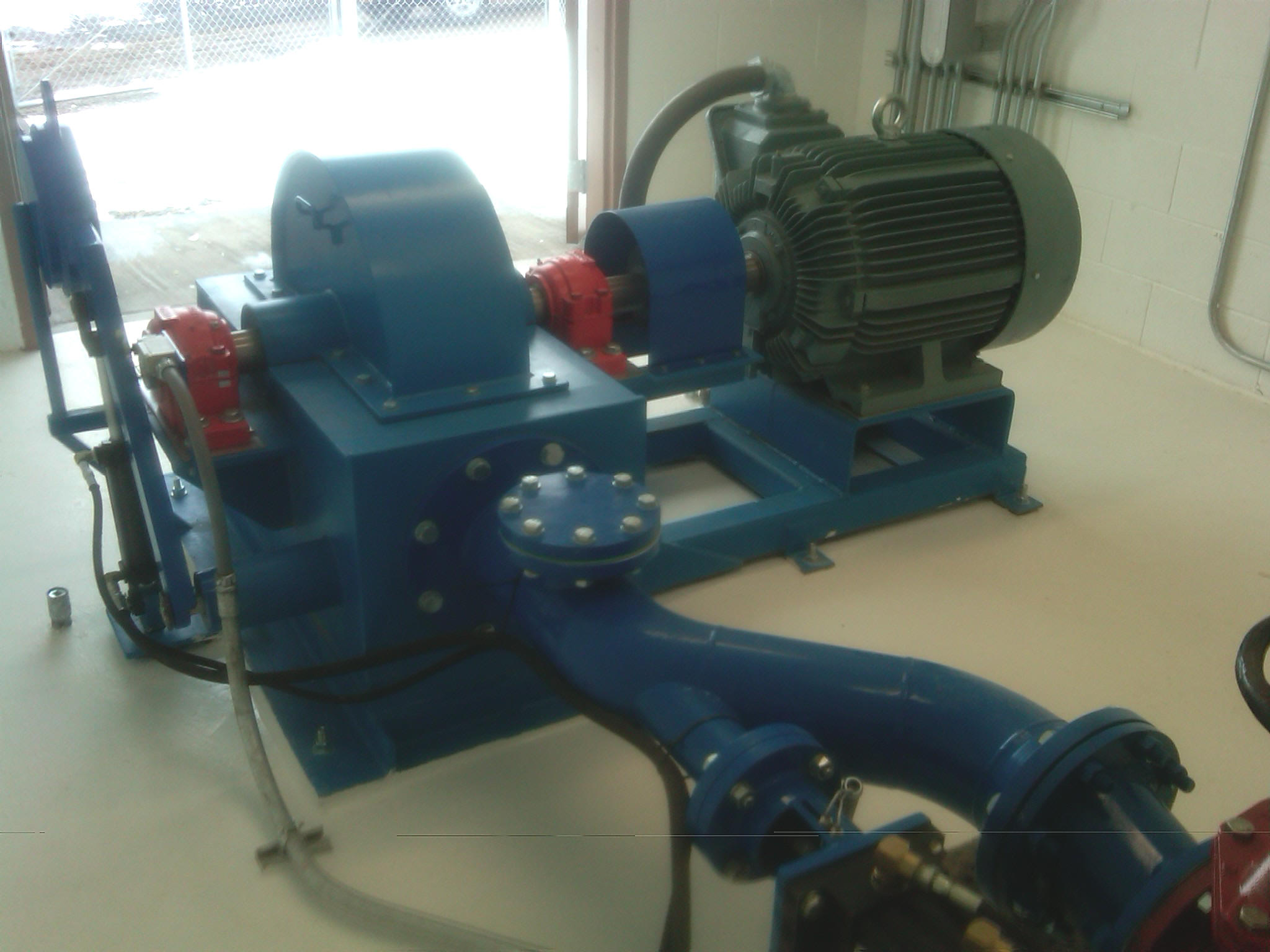

Pelton Hydro Turbine

Single nozzle Pelton turbine-generator





Pelton Hydro Turbine Control Panel

Switchgear and control panels

Pelton Hydro Turbine Inlet Valve

Turbine inlet valve
