Dependable Turbines Ltd.





Made in Canada



Ross Creek Hydroelectric Project

Pemberton, British Columbia, Canada

Statistics:

bullet

Turbine: One single nozzle Pelton

bullet

Generator: One 150kW single phase synchronous generator @ 1200 RPM

bullet

Rated head: 305m

bullet

Rated flow: 0.057m3/sec

bullet

Commissioned: 2012

This is one of two micro hydro power plants built for the supply of electricity to an equestrian center, which consists of three large farm buildings and one house.  The two plants are within one kilometer of each, but are linked and run together into the same off-grid power line.  In addition, the plants are able to run independently should one be shut down.  The systems are fully automatic, capable to be monitored, started and stopped remotely.

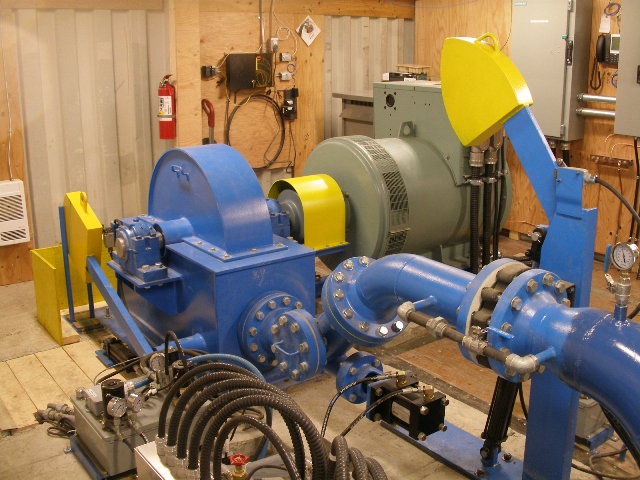

Pelton Hydro Turbine Generator

Inside the powerhouse

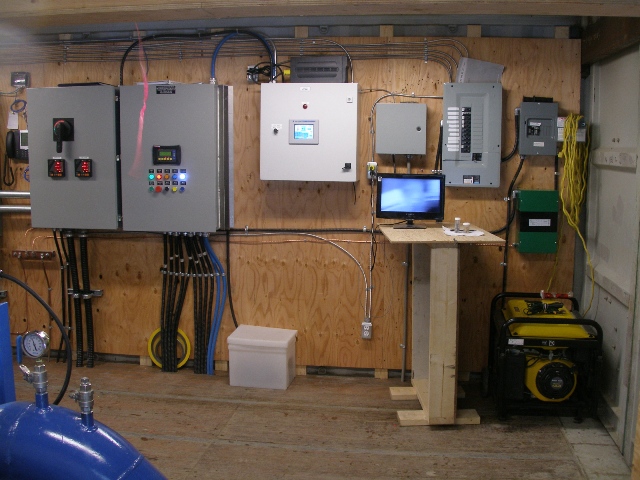

Pelton Hydro Turbine Electrical Panels

Electrical panels
