Dependable Turbines Ltd.





Made in Canada



Wainwright Hydroelectric Project

Town of Wainwright, Alberta

Statistics:

bullet

Turbine: One single nozzle Turgo

bullet

Generator: One 75kW induction generator @ 1200 RPM

bullet

Rated head: 71.7m

bullet

Rated flow: 0.14m3/sec

bullet

Commissioned: May 2019

In this project, water is pumped up a hill and goes down on the other side of the hill to the turbine where the energy is re-captured. The system is connected to Fortis Alberta grid, and power is sold for revenue.

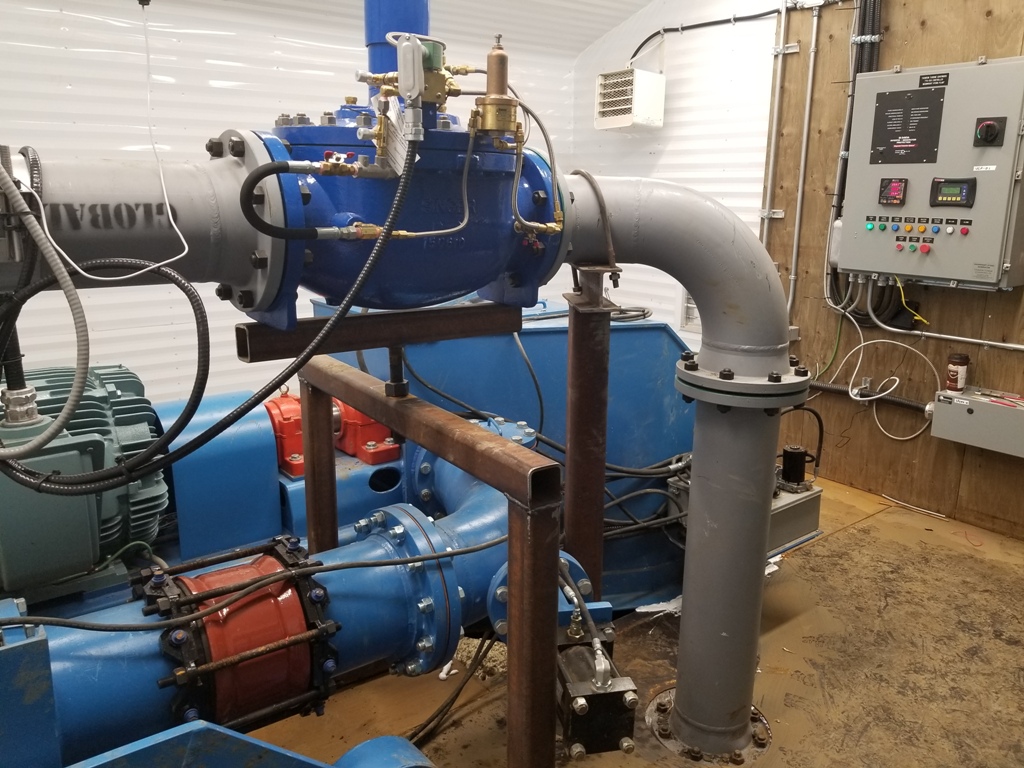

Turgo hydro turbine and grid-tie control panel

Turgo Hydro Turbine and Grid-tie Control Panel

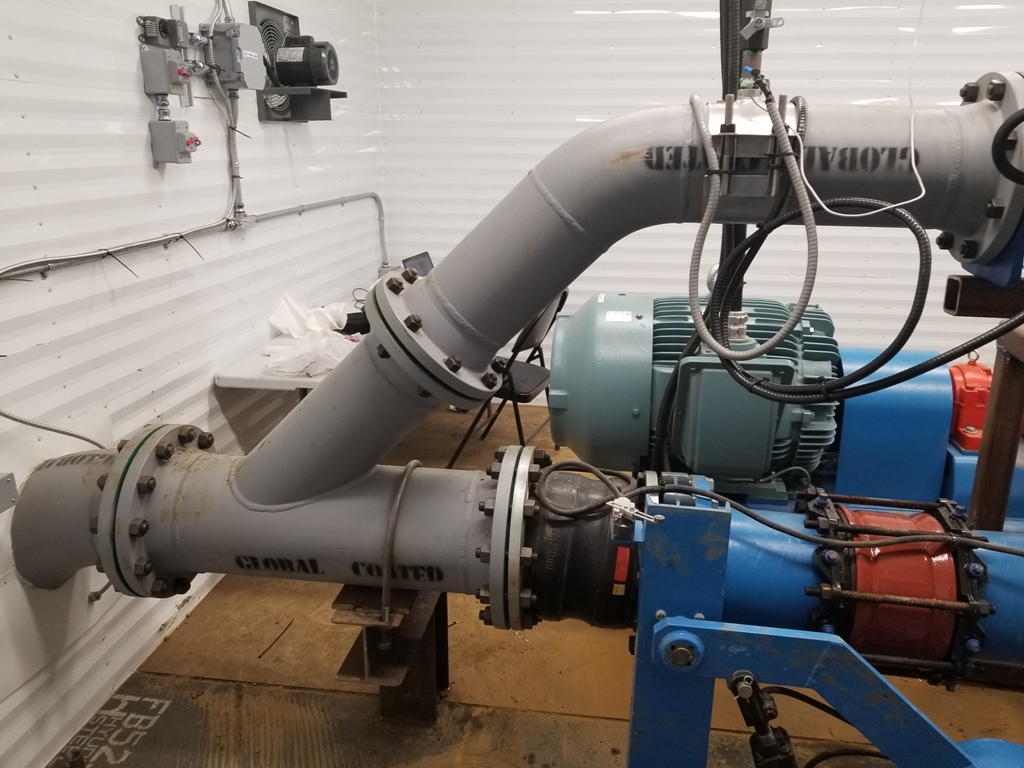

Turgo hydro turbine inlet piping and bypass

Powerplant Inlet Piping with Bypass
