Dependable Turbines Ltd.





Made in Canada



Yandohun Hydroelectric Project

Liberia

Statistics:

bullet

Turbine: single nozzle Turgo

bullet

Generator: 50kW @ 1200 RPM

bullet

Rated head: 56.7m

bullet

Rated flow: 0.163m3/sec

bullet

Commissioned: 2013

This hydro project is funded from the World Bank's Africa Renewable Energy Access Program. Since the plant began operation in 2013, more than 149 households benefit from water-powered electricity. The town of about 2,000 had been off the grid since the previous micro hydro power plant was destroyed during the country's civil war.

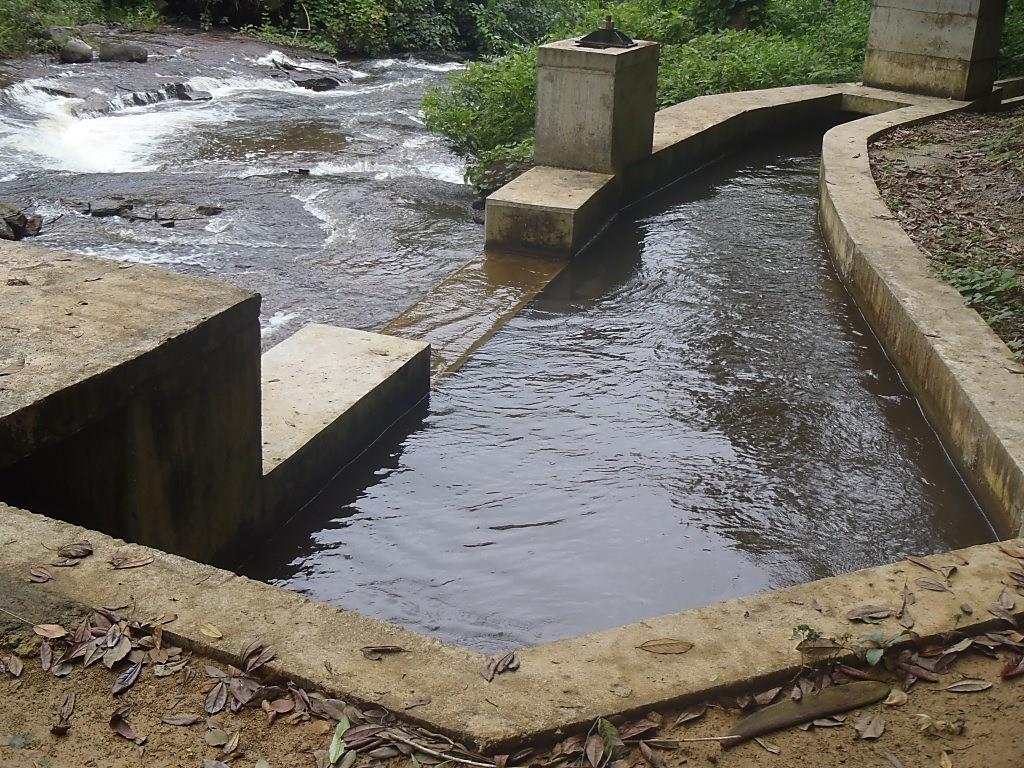

Turgo hydro turbine intake

Hydropower Intake

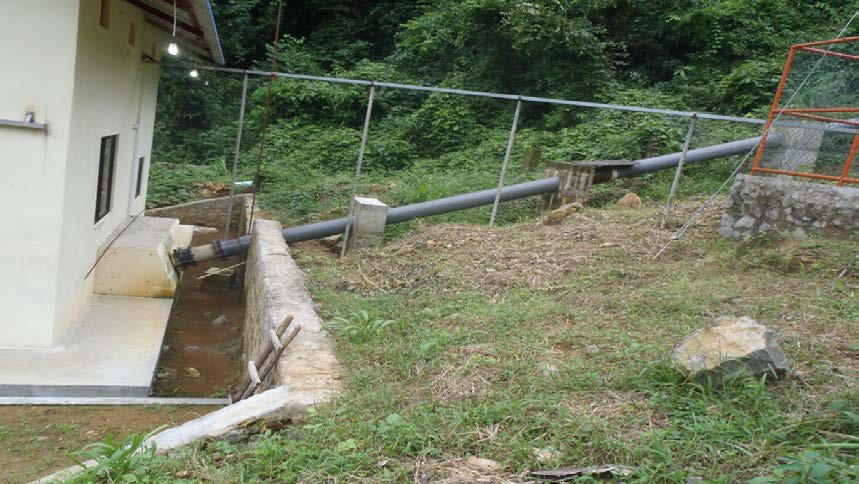

Turgo hydro turbine penstock

Penstock at Powerhouse

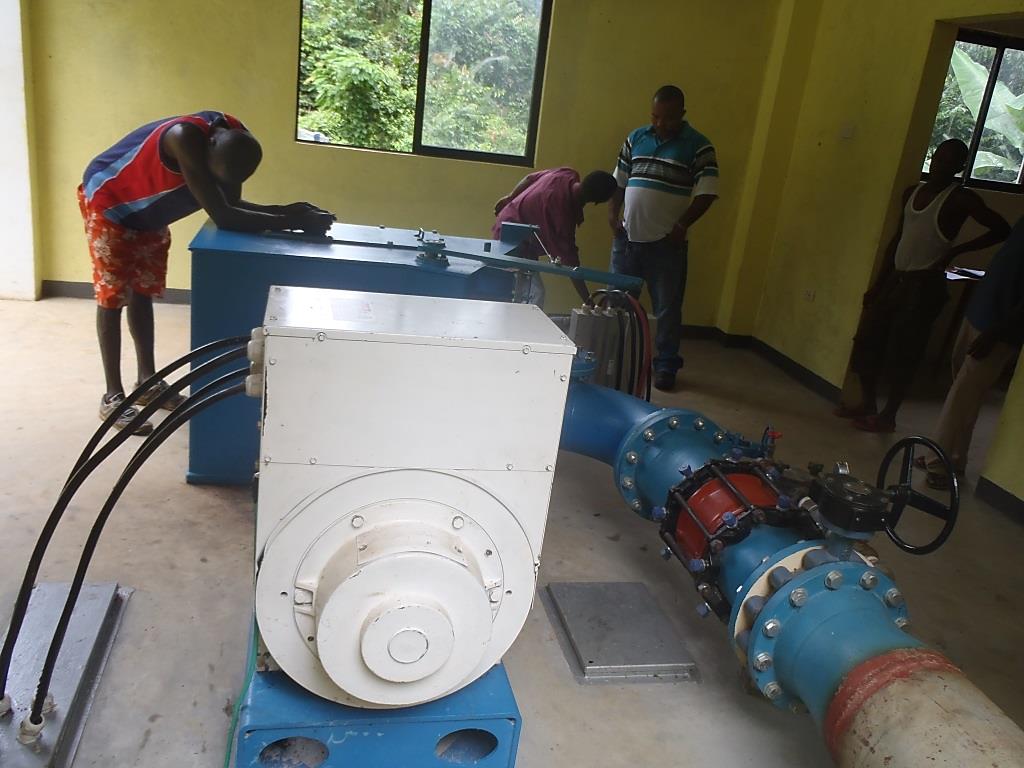

Turgo hydro turbine generator

Hydro Turbine Generator

Turgo hydro turbine powerhouse transformer

Transformer
